Chicken Feeding System In Broiler Coop Shed For Poultry Farm With Automatic Feeder And Drinker
Regular price
$205.97 USD
Regular price
$205.97 USD
Sale price
$205.97 USD
Unit price
per
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Item Type: Travel Bowls
Material: Plastic
Origin: Mainland China
Characteristics of standardized farms
1.Closed aquaculture management is beneficial to the control of epidemic situation and the creation of optimal aquaculture environment. 2.Provide hardware conditions for ecological farming, green farming and food safety. 3.Completely eliminate the traditional small-scale free-range mode. 4.The equipment has a high degree of automation, which saves labor costs and reduces labor intensity. 5.The one-time investment is large, but the service life of the equipment is long, the maintenance cost is low and the comprehensive benefit is improved. 6.Automatic breeding equipment is an inevitable choice for large-scale, modern, information-based and standardized broiler breeding.
|
Products
|
Feeding system ,Ventilation system ,Control system,floor
|
|
Product material
|
stainless steel plastic paper
|
|
Maximum length of feeding system
|
150m
|
|
Color
|
customized
|
|
Material
|
customized
|
|
After-sales service
|
online
|
|
chicken kind
|
broilers
|
|
Feeding mode
|
on the ground
|

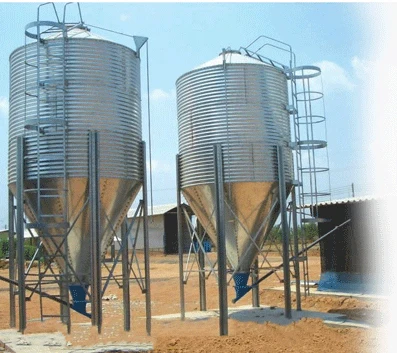

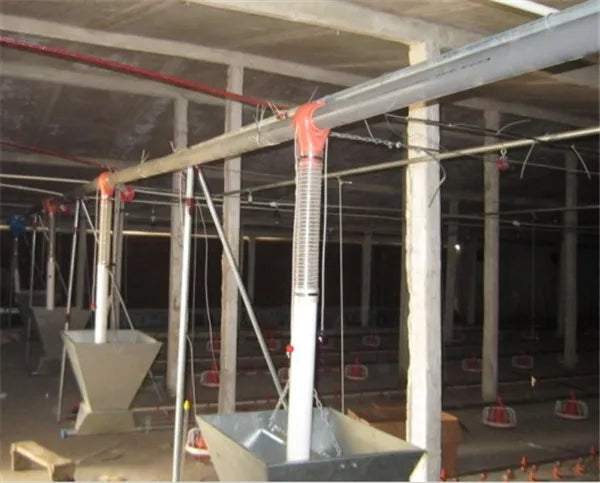

Hot-dip galvanized 5T - 21T can choose One-way & Two-way outlet feed Feed stored for 3 days Waterproof, moisture-proof and heat insulation Feed level sensor from Germany Auger from South Africa 75mm / 90mm tube

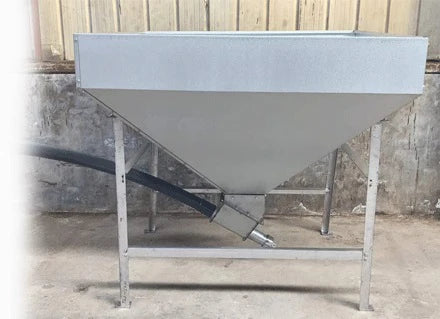

Manpower Hopper
Hot-dip galvanized 800KG - 1400KG can choose One-way outlet feed Keep fresh feed Feed level sensor from Germany Auger from South
Africa 75mm tube
Africa 75mm tube
Transtecno form Italy, Wanxin form China Power: 0.75Kw, 1.1 Kw, 1.5 Kw Voltage: 220V, 380V, Customized Adopts a new type of high-purity all-copper coil resistant to 155 degrees Celsius, Exquisite appearance corrosion resistance, strong heat dissipation, paint surface adhesion is strong and does not fall off.

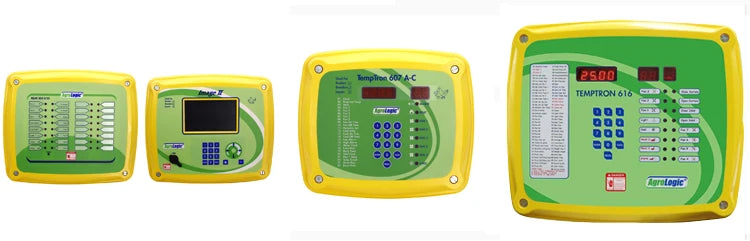

IFM , Agrologic two type can choose Specially designed for the material line, higher sensitivity, stronger resistance to current impact

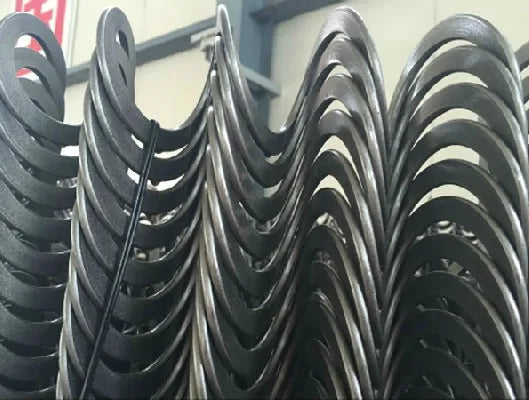

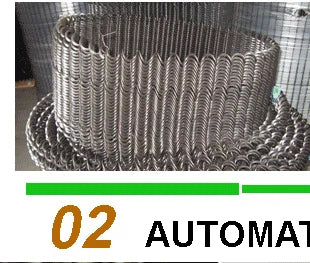

The pure imported special material thread augerhas high surface hardness and wear resistanceGood internal toughness, tensile strength, longservice life, convenient and simple installation

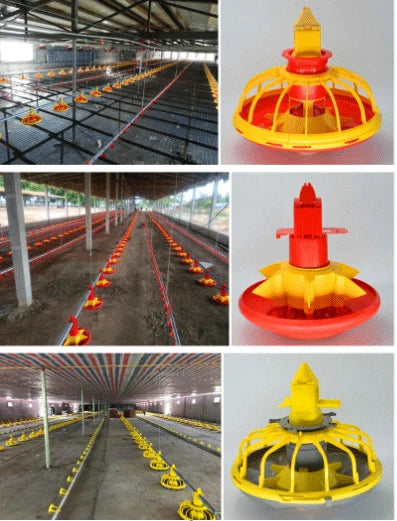

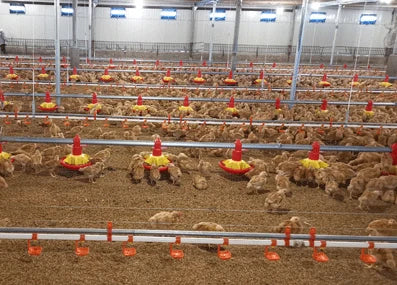

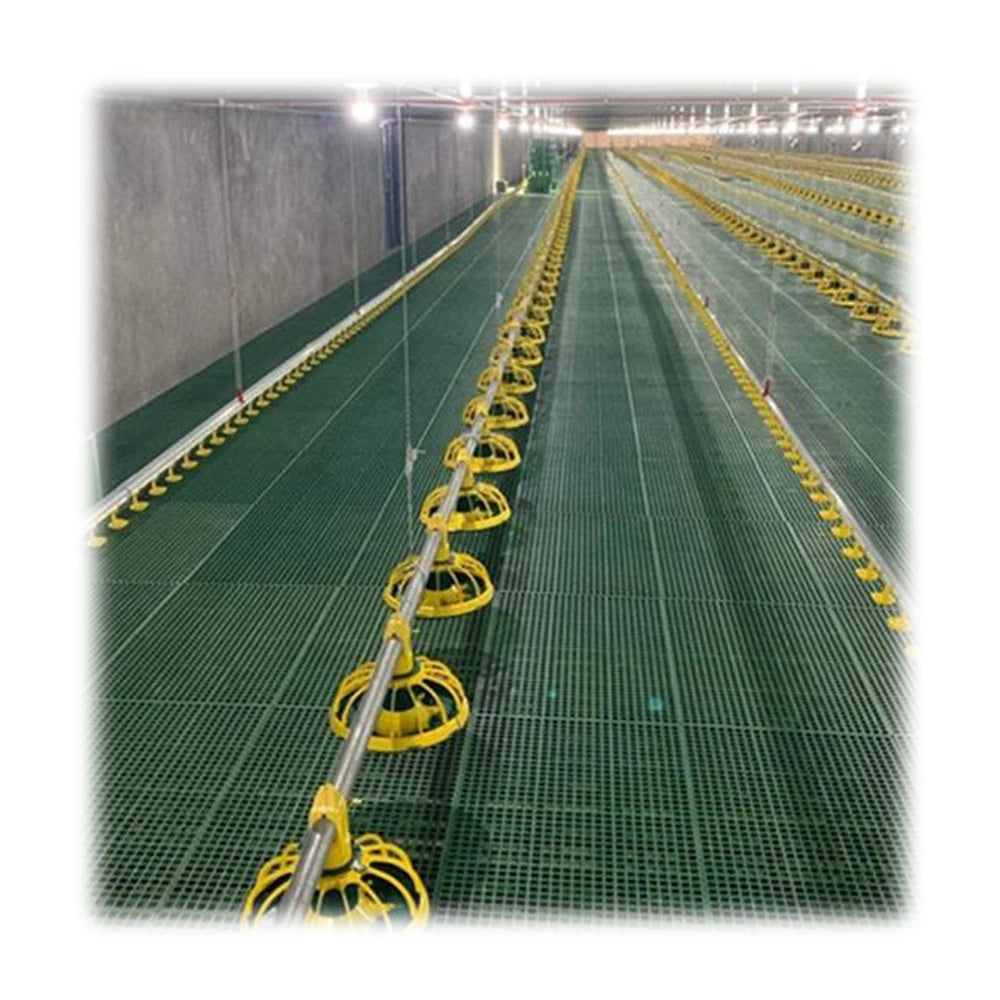

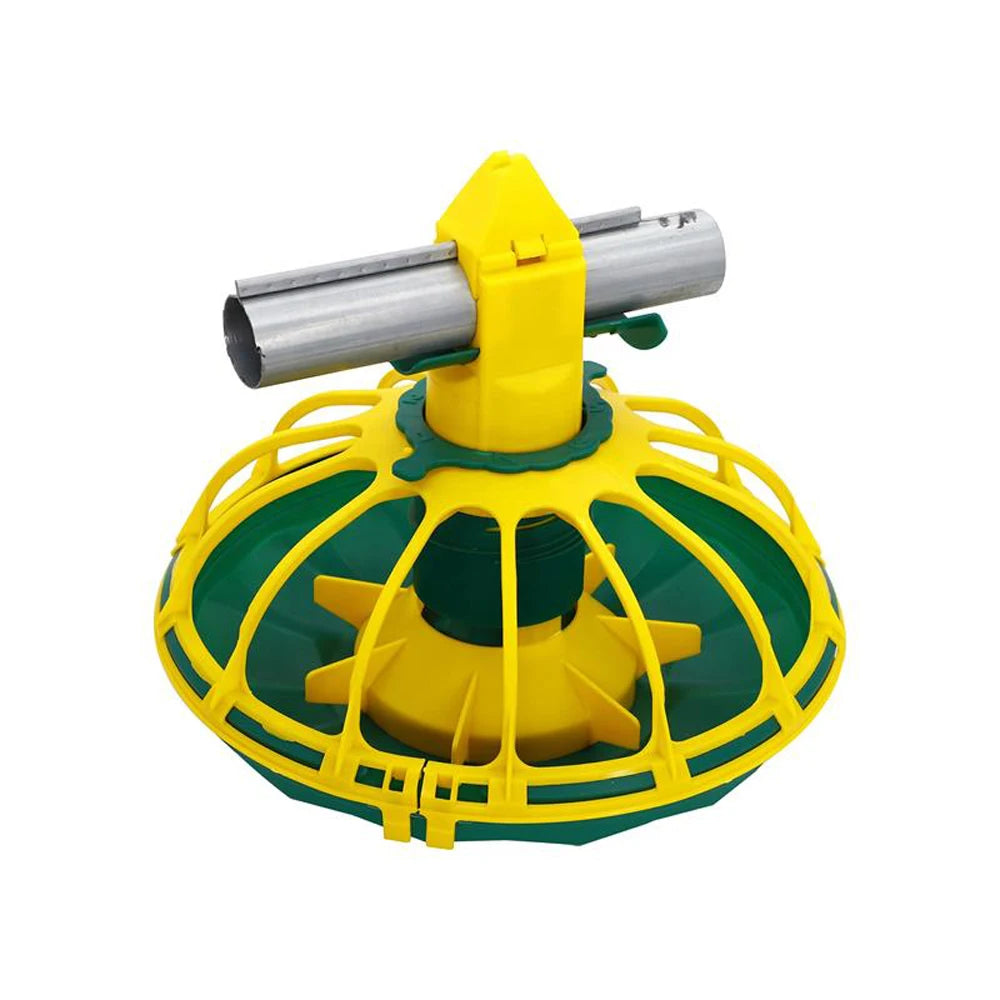

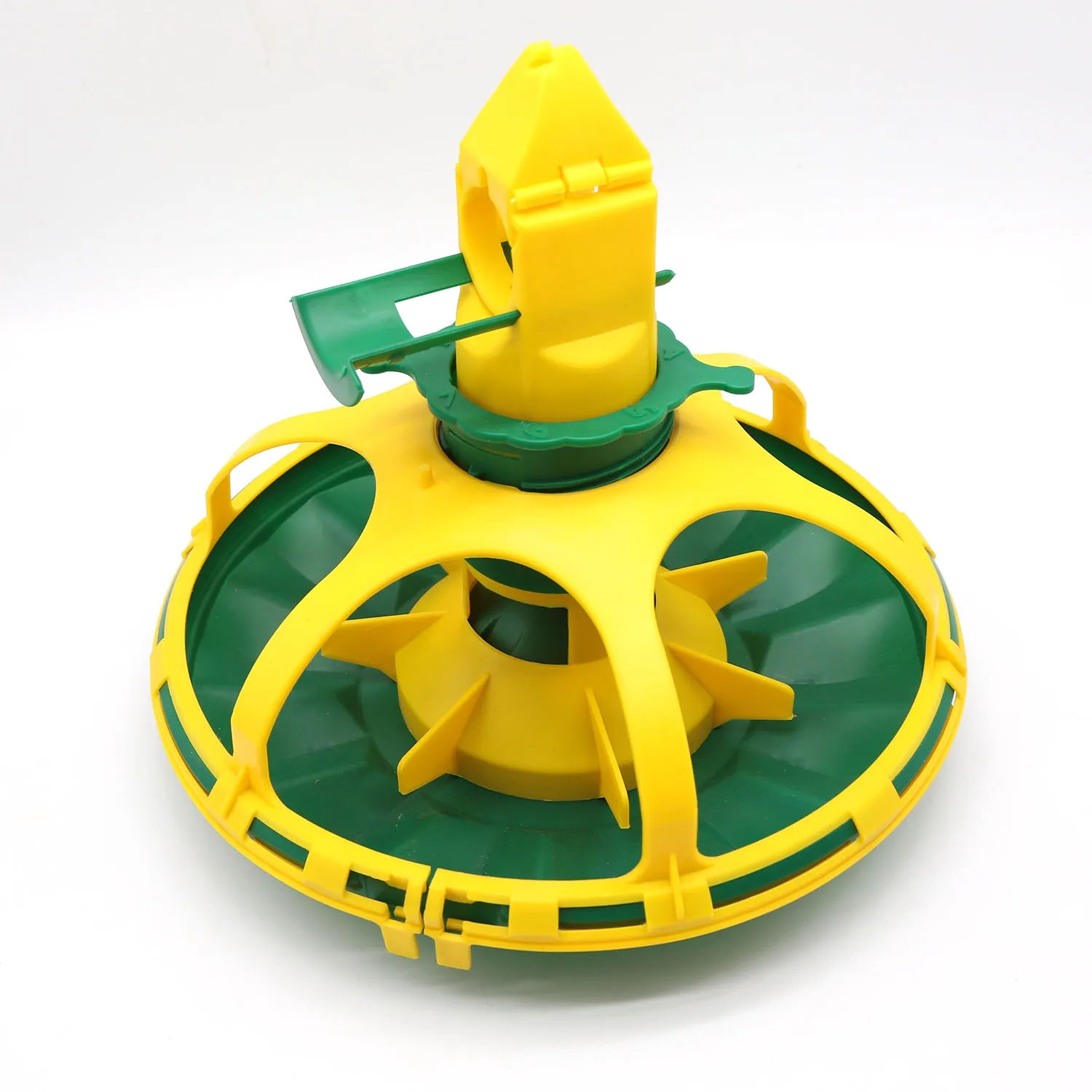

Automatic Pan
Feeding Line
Diameter of conveying pipe: 45mm (4-pan/3m, 3pan/3m) Material: hot-dip galvanized sheet pipe with the zinc coating amount of more than 275m2. Helical spring auger from South Africa, Feedingcapacity:450kg/h.
Capacity:70KGS, Material: hot-dip galvanized sheet, Material thickness: 1mm

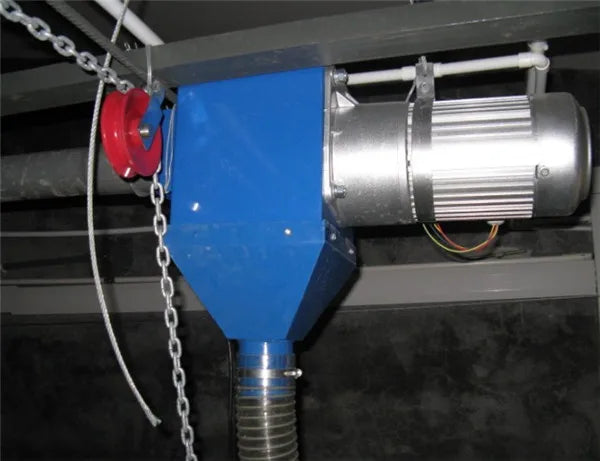

Motor
High-quality special driving reduction motor, China Taiwan motor and Italy motor for your choice, 0.75KW/1.1KW/1.5KW, 380V/220V/others, 3 Phase/1 Phase, 50Hz/60Hz

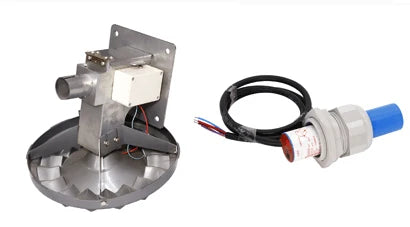

Feed Level Sensor And Witch
Two kinds of sensors are from Germany and Israel A mechanical material level switch

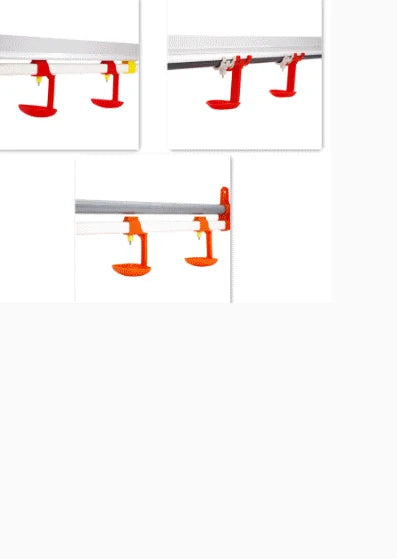

This system can provide fresh and cleanwater for poultry which is crucial forthe growth of poultry. The drinkers canbe triggered from 360 degree whichhelps young birds start well and makesdrinking easilw.Automatic drinking swstem will includenipple drinkers, filter, pipe connection,lifting piece, dosing device, tube fix clip.s-hook,lifter, small pulley, nylon cord
Three Kind PoultryAutomatic Nipple 12nipple or 15nipple/3mDrinking/drinker system for your choice: Square water pipe with qalvanized support Round water pipe with aluminum support Square water pipe with aluminum support Different Type Nipple Drinker But All IsDouble seal structure.

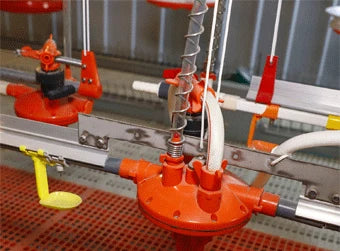

Pressure Regulator
Double water-inlet-tube and flushing pressureregulator ensure large water flow . water-level display pipe hanging system

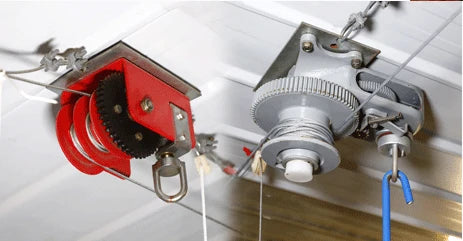

Suspension AndLifting System
Winch in the middle of house锛孿r hanging point 3m, all steel wire. It's very convient to adjust the feeding line height by winch.

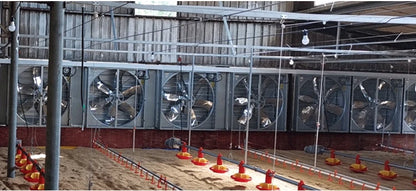

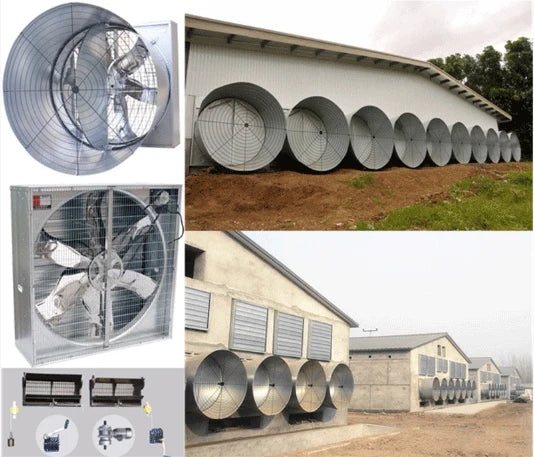

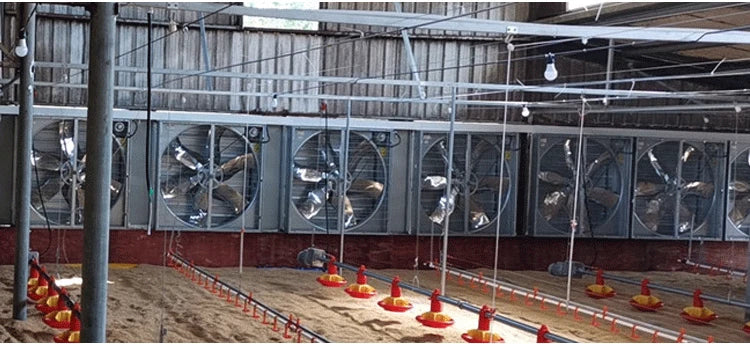

36” Box Fan: 20800m3/Hr 1000x1000x450mm 0.5kw 50”Box Fan: 43070m3/H 1380x1380x 450mm 1 .1 kw 50 Butterfly Cone Fan: Design of butterfly door makes a minimum wind resistance and optimum performance 0.75kw 3 fan blades, Aircapacity: 41525m3/h; 1.1Kw 6 fan blades, Aircapacity: 49452m3/h.

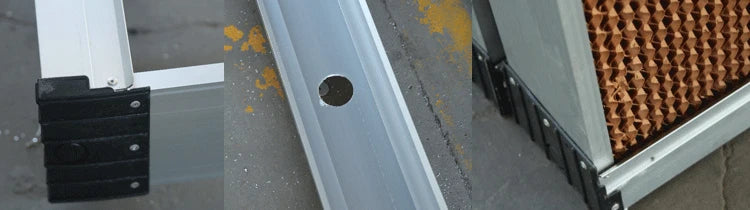

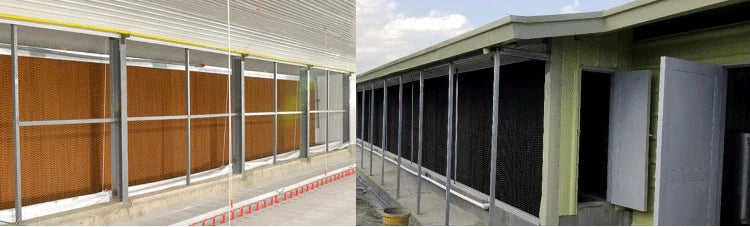

Cooling pad and fan, the longitudinal ventilation and cooling combination is the moste conomic and effective summer cooling system for poultry house. Color: black, yellow, green, red etc Thickness: 100mm,150mm Height: 1660mm,1960mm, 2160mm (with frame) 1500mm,1800mm, 2000mm( without frame) Frame: Aluminium frame -- high strength, good corrosion resistance, even water distribution compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame.

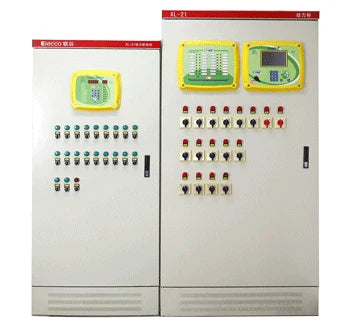

This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. (1) power control box with environment controller (2) temperature sensor (3) humidity sensor (4) negative pressure meter (5)amperemeter and voltmeter (6)alarm and automatic dialing phone (7) wind meter and voltage meter(optional) The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.
U-Best Husbandry equipment Co., Ltd
U-Best Husbandry equipment Co., Ltd is located in the cultural world kite capital - Weifang,China ,where enjoys convenient access to major transportation networks.Our company specializes in the collection of animal husbandry equipment research and development ,manufacture, sales , installment,overall design and after-sale maintenance in the integration of modern comprehensive import and export service.We are pursuing to be the most valuable animal husbandry equipment solution provider worldwide.
U-Best offers a wide range of products with targeted designs according to clients requirements in order to satisfy different environmental conditions.U-Best will always be producing the state-of-the-art facilities compounding with professional after-sale service to show all over the world.
— Q&A —
1. Q: Are you the direct manufacturer or trading company? A: We are direct manufacture, We have been engaged in chicken equipment industry for 15 years.
2. Q: What's the quality of your water dispensers? A: Each of our drinking fountains factory quality inspection time is 10 minutes, we can ensure that our drinking fountains products will not exude a little water within 10 minutes.
3. Q: Can the motor voltage of your automatic feeding system be used in our country? A: We can customize the special motor for you according to the voltage of your country.
4. Q: Can the series of accessories produced by your factory match our products? A: The detailed introduction of our website has provided relatively complete parameters of our products, which can basically meet the needs of customers to analyze and judge the correlation between our products and customers' products.
5. Q: Can the color be customized? A: Of course, we can produce products according to your requirements.We can also produce products that doesn't fade
6. Q: Do you have warranty for your products? A :Yes, all our products are guaranteed for one year (we don't guarantee the damage caused by human factors or improper installation)
7.Q:What are the installation measures of your products? A:Installation, we provide you with 1, installation drawings; 2. Let our technicians direct video guidance with you
